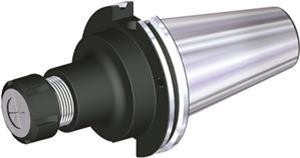

0.08 to 0.7874 Inch Collet Capacity, 152.4 mm Projection, CAT40 Taper Shank, Series ER32 Collet Chuck
- Item Code: CV40ER32600
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 2.1300 Inch |
|---|---|
| Body Diameter | 1.9685 Inch |
| Overall Length | 8.6870 Inch |
| Usable Length | 5.2500 Inch |
| Clamping Length | 1.8110 Inch |
| Nut Diameter | 1.9690 Inch |
| Brand | WIDIA-Erickson |
| Flange Length | 15.87 MM |
| Shank Length | 2.8120 Inch |
| Shank Style | Taper |
| Gage Length | 6 Inch |
| Hand of Tool | Neutral |
| Shank Diameter | 1.7500 Inch |
| Product Name | Collet Chucks |
