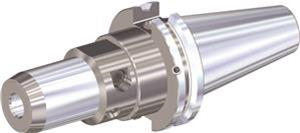

CAT40 Taper Shank, 5/8 Inch Hole Diameter, 37.59mm Nose Diameter, 101.6mm Projection, Hydraulic Tool Holder and Chuck

  • Item Code: CV40HC062400
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 1.4803 Inch
Clamping Length 1.5400 Inch
Overall Length 6.6870 Inch
Usable Length 1.8307 Inch
Adjustment Range 0.3937 Inch
Gage Length 4 Inch
Shank Length 2.8120 Inch
Brand WIDIA-Erickson
Hand of Tool Neutral
Product Name Hydraulic Chucks
Shank Diameter 1-3/4 Inch
Shank Style Taper
