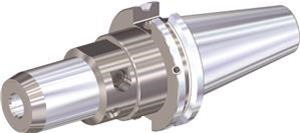

CAT40 Taper Shank, 10mm Hole Diameter, 29.7mm Nose Diameter, 95mm Projection, Hydraulic Tool Holder and Chuck
- Item Code: CV40HC10M375
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter |
29.70 MM |
| Clamping Length |
31.00 MM |
| Overall Length |
163.50 MM |
| Shank Diameter |
44.45 MM |
| Shank Length |
71.42 MM |
| Usable Length |
39.00 MM |
| Adjustment Range |
10.00 MM |
| Brand |
WIDIA-Erickson |
| Gage Length |
95.25 MM |
| Hand of Tool |
Neutral |
| Product Name |
Hydraulic Chucks |
| Shank Style |
Taper |
