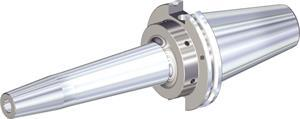

3/4 in. x 6 in. Gage Length Shrink Fit General Purpose Toolholder

  • Item Code: CV40HPVTT075600
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Balanceable, fine tune with optional M6 set screws
    • Suitable for carbide and HSS cutting tools

Tech Specs

Back To Top
Coolant Hole Diameter (mm) 10.00 mm
Overall Length (mm) 220.65 mm
Series CV40
Adapter/Shank/Bore Dia (in.) 1.7500"
Coolant Thru Yes
Overall Length (in.) 8.6870"
Adapter/Shank/Bore Dia (mm) 44.45 mm
Coolant Hole Diameter (in.) 0.3937"
Shank Type Taper Shank
Brand Widia-Erickson
