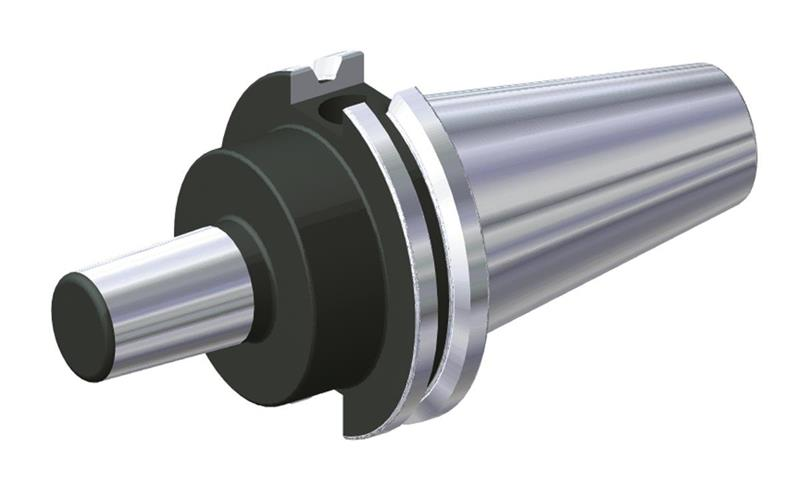

CAT40 Outside Taper, JT3 Inside Taper, 1.56 Inch Projection, Taper Adapter

  • Item Code: CV40JT3278
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 0.8110
Adapt/Shank/Bore Diameter WKPS (mm) 20.599
Adapter Size Workpiece Side 0030
Gage Length 1 (Inch) 1.5610
Gage Length 1 (Metric) 39.649
Max Interference Diameter (Inch) 1.7600
Overall Length (Inch) 5.4670
Overall Length (Metric) 138.862
Shank Length (Metric) 71.425
System SizeWorkpiece Side 3
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Size Machine Side-EPP 0400
Adapter Style Machine Side-EPP SKG30ANSICAT InThdStyAw/oCool
Adapter Type Machine Side-EPP SKG - Steep Taper
Brand WIDIA-Erickson
Units of Tool (Extract) IN - Inch
Adapter Type Machine Side Taper Shank
Body Diameter Machine Side (In) 2.5000
Adapter/Shank/Bore Diameter (Inch) 1.7500
Shank Length (Inch) 2.8120
System Size Machine Side CV40
Adapter/Shank/Bore Diameter (mm) 44.450
Body Diameter Machine Side (mm) 63.500
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
