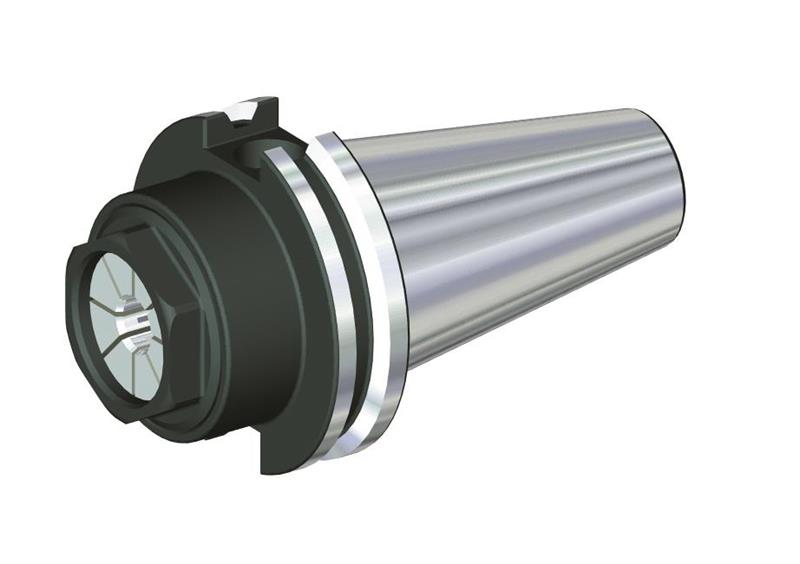

1.750 Inch Body Dia. CV40 4.380 Inch OAL ER32 Short Taper Shank Collet Chuck
- Item Code: CV40SER32169
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 0.4330 Inch |
|---|---|
| Body Diameter | 1.7500 Inch |
| Clamping Length | 1.9690 Inch |
| Gage Length | 1.6930 Inch |
| Overall Length | 4.3800 Inch |
| Shank Length | 2.8100 Inch |
| Usable Length | 0.9430 Inch |
| Brand | WIDIA-Erickson |
| Flange Length | 15.87 MM |
| Shank Style | Taper |
| Hand of Tool | Neutral |
| RPM | 20000 |
| Shank Diameter | 1.7500 Inch |
| Nut Diameter | 1.4100 Inch |
| Product Name | Collet Chucks |
