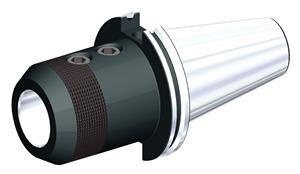

3/16 in. x 4.067 in. OAL CV40 Taper Shank End Mill Adapter

  • Item Code: CV40ZEM018138
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Gage Length Metric 35.052 mm
Adapter Type Taper Shank
Body Diameter Metric 17.475 mm
Clamping Hole Length Inch 2.8900"
Brand Widia-Erickson
Gage Length Inch 1.3800"
Metric Diameter 4.76 mm
Overall Length Inch 4.0670"
Body Diameter Inch 0.6880"
Decimal Diameter 0.1875"
Clamping Hole Length Metric 73.41 mm
Series CV40
Fractional Diameter 3/16"
Overall Length Metric 103.302 mm
