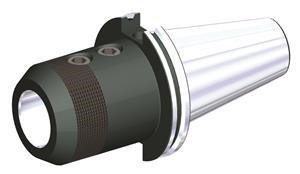

3/8 Inch Hole Diameter, 5/8-11 Drawbar Thread, CAT40 Taper Shank End Mill Holder
- Item Code: CV40ZEM038138
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter 1 Workpce Side (mm) |
25.400 |
| Flange-Front End Dist (In) |
0.6280 |
| Flange-Front End Dist (mm) |
15.952 |
| Gage Length 1 (Inch) |
1.3800 |
| Gage Length 1 (Metric) |
35.052 |
| Overall Length (Inch) |
4.0670 |
| Overall Length (Metric) |
103.302 |
| Usable Length (Inch) |
0.5965 |
| Usable Length (Metric) |
15.152 |
| Adapter Size Workpiece Side |
0375 |
| Adapter Style Machine Side |
CV-Caterpillar V-Flange In |
| Units of Tool (Extract) |
IN - Inch |
| Adapter/Shank/Bore Diameter (Inch) |
1.7500 |
| Shank Length (Inch) |
2.8110 |
| Shank Length (Metric) |
71.399 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
9.525 |
| Adapter Type Machine Side |
Taper Shank |
| Flange Length (Metric) |
15.875 |
| System Size Machine Side |
CV40 |
| Adapt/Shank/Bore Diameter WKPS F |
3/8 |
| Body Diameter 1 Workpce Side (In) |
1.0000 |
| Clamp Screw ID Drive Size |
3/16 |
| Adapt/Shank/Bore Diameter WKPS (In) |
0.3750 |
| Adapter Style Machine Side-EPP |
SKG31ANSICAT InThdStyADw/CntC |
| Body Diameter Machine Side (In) |
2.5000 |
| Brand |
WIDIA-Erickson |
| Adapter Type Machine Side-EPP |
SKG - Steep Taper |
| Adapter/Shank/Bore Diameter (Fractional) |
1 3/4 |
| Body Diameter Machine Side (mm) |
63.500 |
| Adapter Size Machine Side-EPP |
0400 |
| Adapter/Shank/Bore Diameter (mm) |
44.450 |
