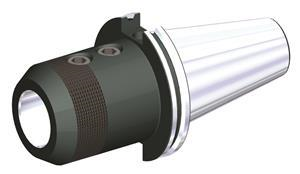

5/8 Inch Hole Diameter, 5/8-11 Drawbar Thread, CAT40 Taper Shank End Mill Holder

  • Item Code: CV40ZEM062175
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Flange-Front End Dist (In) 1.1380
Flange-Front End Dist (mm) 28.906
Overall Length (Inch) 4.4370
Overall Length (Metric) 112.700
Usable Length (Inch) 1.0984
Usable Length (Metric) 27.900
Adapt/Shank/Bore Diameter WKPS F 5/8
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
Adapter Size Workpiece Side 0625
Adapter/Shank/Bore Diameter (mm) 44.450
Body Diameter Machine Side (In) 2.5000
Brand WIDIA-Erickson
Body Diameter Machine Side (mm) 63.500
Gage Length 1 (Metric) 44.450
Adapt/Shank/Bore Diameter WKPS (In) 0.6250
Adapter Size Machine Side-EPP 0400
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (mm) 15.875
Clamp Screw ID Drive Size 1/4
Flange Length (Metric) 15.875
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Body Diameter 1 Workpce Side (In) 1.7500
Body Diameter 1 Workpce Side (mm) 44.450
System Size Machine Side CV40
Adapter/Shank/Bore Diameter (Inch) 1.7500
Gage Length 1 (Inch) 1.7500
Shank Length (Inch) 2.8110
Shank Length (Metric) 71.399
