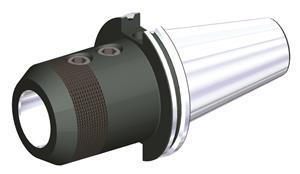

3/4 Inch Hole Diameter, 5/8-11 Drawbar Thread, CAT40 Taper Shank End Mill Holder

  • Item Code: CV40ZEM075175
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Flange-Front End Dist (mm) 25.350
Shank Length (Metric) 71.399
Usable Length (Inch) 0.9587
Adapt/Shank/Bore Diameter WKPS (In) 0.7500
Body Diameter 1 Workpce Side (In) 1.7500
Body Diameter 1 Workpce Side (mm) 44.450
Clamp Screw ID Drive Size 5/16
Flange Length (Metric) 15.875
Gage Length 1 (Inch) 1.7500
Overall Length (Inch) 4.4370
System Size Machine Side CV40
Overall Length (Metric) 112.700
Usable Length (Metric) 24.350
Adapter Size Machine Side-EPP 0400
Shank Length (Inch) 2.8110
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (mm) 19.050
Adapt/Shank/Bore Diameter WKPS F 3/4
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (Fractional) 1 3/4
Adapter/Shank/Bore Diameter (Inch) 1.7500
Flange-Front End Dist (In) 0.9980
Gage Length 1 (Metric) 44.450
Adapter Size Workpiece Side 0750
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Adapter/Shank/Bore Diameter (mm) 44.450
Body Diameter Machine Side (mm) 63.500
Brand WIDIA-Erickson
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Body Diameter Machine Side (In) 2.5000
