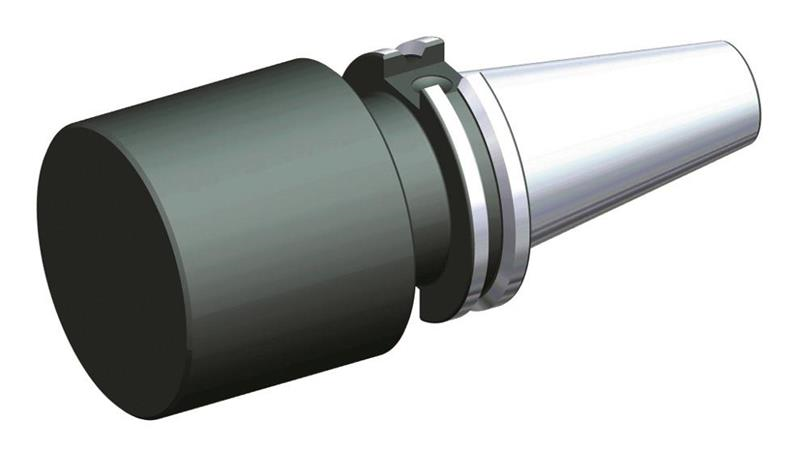

CAT50 Taper Shank, 152.4mm Diameter, Tool Holder Blank

  • Item Code: CV50BB600120
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.

Tech Specs

Back To Top
Adapter Style Machine Side-EPP SKG30ANSICAT InThdStyAw/oCool
Body Diameter 1 Workpce Side (In) 6.0000
Body Diameter 1 Workpce Side (mm) 152.400
Gage Length 1 (Inch) 12.0000
Gage Length 1 (Metric) 304.800
Overall Length (Inch) 16.0000
Overall Length (Metric) 406.400
System SizeWorkpiece Side CV50
System Size Machine Side CV50
Max Interference Diameter (Inch) 2.7500
Shank Length (Inch) 4.1250
Units of Tool (Extract) IN - Inch
Adapter Size Machine Side-EPP 0500
Shank Length (Metric) 104.775
Brand WIDIA-Erickson
Coolant Supply No
Adapter Type Machine Side-EPP SKG - Steep Taper
