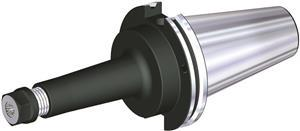

1.34 Inch Body Dia. CV50 10 Inch OAL Form B ER20 Taper Shank Collet Chuck
- Item Code: CV50BER20600
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER20
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 1.7323 Inch |
|---|---|
| Body Diameter | 1.3400 Inch |
| Clamping Length | 1.4173 Inch |
| Gage Length | 6 Inch |
| Nut Diameter | 1.3400 Inch |
| Usable Length | 4.6250 Inch |
| Hand of Tool | Neutral |
| Shank Diameter | 2.7500 Inch |
| Shank Style | Taper |
| Overall Length | 10 Inch |
| Shank Length | 4.1250 Inch |
| Brand | WIDIA-Erickson |
| Product Name | Collet Chucks |
