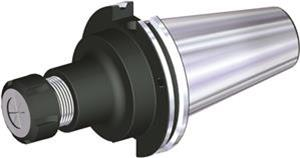

2.48 Inch Nut Dia. CV50 7 Inch OAL Form B ER40 Taper Shank Collet Chuck
- Item Code: CV50BER40300
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER40
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 1.2598 Inch |
|---|---|
| Clamping Length | 2.0472 Inch |
| Gage Length | 3 Inch |
| Nut Diameter | 2.4800 Inch |
| Overall Length | 7 Inch |
| Shank Diameter | 2.7500 Inch |
| Usable Length | 2.2500 Inch |
| Flange Length | 15.87 MM |
| Product Name | Collet Chucks |
| Brand | WIDIA-Erickson |
| Shank Style | Taper |
| Hand of Tool | Neutral |
| Shank Length | 4.1250 Inch |
