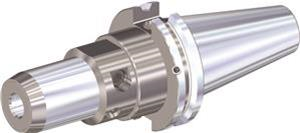

CAT50 12mm I.D. x 95mm Gage Length Standard HP Form B/AD Hydraulic Chuck

  • Item Code: CV50BHC12M375
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adjustment Range 10.00 MM
Body Diameter 31.60 MM
Clamping Length 36.00 MM
Gage Length 95.25 MM
Overall Length 196.85 MM
Usable Length 39.50 MM
Shank Style Taper
Flange Length 15.87 MM
Shank Length 104.77 MM
Product Name Hydraulic Chucks
Shank Diameter 69.85 MM
Brand WIDIA-Erickson
Hand of Tool Neutral
