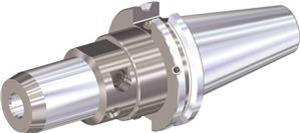

CAT50 20mm I.D. x 102mm Gage Length Standard HP Form B/AD Hydraulic Chuck
- Item Code: CV50BHC20M400
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter |
41.60 MM |
| Clamping Length |
41.00 MM |
| Overall Length |
203.20 MM |
| Usable Length |
48.00 MM |
| Hand of Tool |
Neutral |
| Product Name |
Hydraulic Chucks |
| Shank Style |
Taper |
| Adjustment Range |
10.00 MM |
| Brand |
WIDIA-Erickson |
| Flange Length |
15.87 MM |
| Gage Length |
101.60 MM |
| Shank Length |
104.77 MM |
| Shank Diameter |
69.85 MM |
