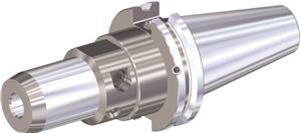

CAT50 Taper Shank, 25mm Hole Diameter, 49.9mm Nose Diameter, 117mm Projection, Hydraulic Tool Holder and Chuck
- Item Code: CV50BHC25M462
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter |
49.90 MM |
| Clamping Length |
51.00 MM |
| Gage Length |
117.47 MM |
| Overall Length |
219.07 MM |
| Usable Length |
51.00 MM |
| Product Name |
Hydraulic Chucks |
| Shank Style |
Taper |
| Adjustment Range |
10.00 MM |
| Brand |
WIDIA-Erickson |
| Hand of Tool |
Neutral |
| Shank Diameter |
69.85 MM |
| Flange Length |
15.87 MM |
| Shank Length |
104.77 MM |
