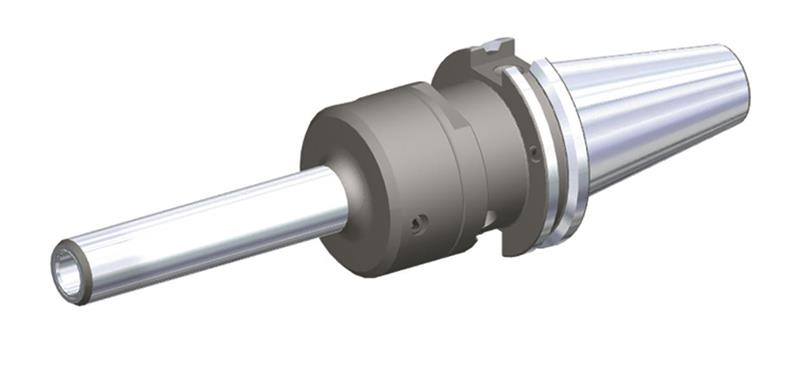

CAT50 14mm I.D. x 200mm Gage Length Slim Line Form B/AD Hydraulic Chuck

  • Item Code: CV50BHCSL14M787
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 21.50 MM
Overall Length 301.60 MM
RPM 20000
Clamping Length 36.00 MM
Shank Diameter 69.85 MM
Usable Length 95.00 MM
Gage Length 200.00 MM
Shank Style Taper
Adjustment Range 10.00 MM
Brand WIDIA-Erickson
Hand of Tool Neutral
Flange Length 15.87 MM
Product Name Hydraulic Chucks
Shank Length 104.77 MM
