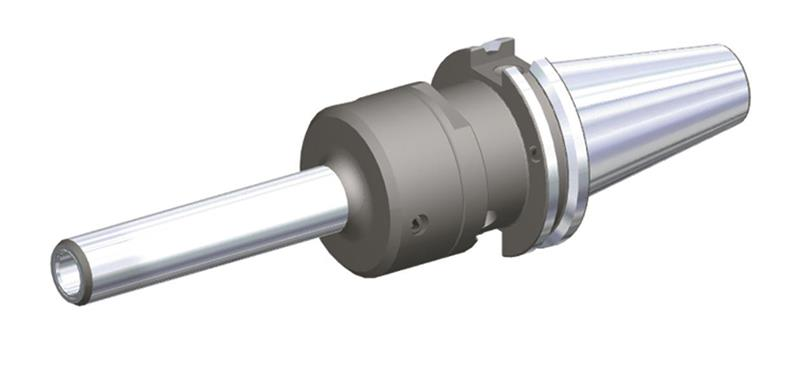

CAT50 18mm I.D. x 200mm Gage Length Slim Line Form B/AD Hydraulic Chuck

  • Item Code: CV50BHCSL18M787
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 25.50 MM
Clamping Length 39.00 MM
Gage Length 200.00 MM
Usable Length 95.00 MM
Hand of Tool Neutral
Overall Length 301.60 MM
Shank Diameter 69.85 MM
Adjustment Range 10.00 MM
Brand WIDIA-Erickson
Flange Length 15.87 MM
Product Name Hydraulic Chucks
RPM 20000
Shank Length 104.77 MM
Shank Style Taper
