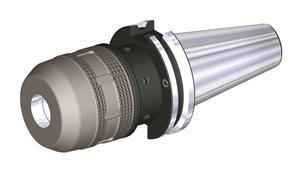

CAT50 1.250 Inch x 5.32 Inch Gage Length Form B/AD HPMC Milling Chuck
- Item Code: CV50BHPMC125531
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adjustment Range (mm) |
20.000 |
| Body Diameter 1 Workpce Side (In) |
2.9134 |
| Body Diameter 1 Workpce Side (mm) |
74.000 |
| Body Diameter Machine Side (In) |
3.8740 |
| Flange-Front End Dist (In) |
4.5654 |
| Flange-Front End Dist (mm) |
115.960 |
| Gage Length 1 (Inch) |
5.3150 |
| Gage Length 1 (Metric) |
135.000 |
| Overall Length (Inch) |
9.3150 |
| Overall Length (Metric) |
236.600 |
| Shank Length (Metric) |
104.780 |
| Usable Length (Inch) |
4.5654 |
| Usable Length (Metric) |
115.960 |
| Adapt/Shank/Bore Diameter WKPS F |
1 1/4 |
| Adapter/Shank/Bore Diameter (Fractional) |
2 3/4 |
| Adapter/Shank/Bore Diameter (Inch) |
2.7500 |
| Stop Screw ID Drive Size |
2.5 mm & 5 mm |
| Shank Length (Inch) |
4.1252 |
| Adapter Size Workpiece Side |
1250 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
31.750 |
| Adapter Style Machine Side-EPP |
SKG37ANSICATInThdStBADw/CnDCnC |
| System Size Machine Side |
CV50 |
| Adjustment Range (Inch) |
0.7874 |
| Brand |
WIDIA-Erickson |
| Max Interference Diameter (Inch) |
2.7500 |
| Units of Tool (Extract) |
IN - Inch |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.2500 |
| Adapter Size Machine Side-EPP |
0500 |
| Adapter Style Machine Side |
CV-Caterpillar V-Flange In |
| Adapter Type Machine Side |
Taper Shank |
| Body Diameter Machine Side (mm) |
98.400 |
| Flange Length (Metric) |
15.860 |
| Adapter Type Machine Side-EPP |
SKG - Steep Taper |
| Adapter/Shank/Bore Diameter (mm) |
69.850 |
