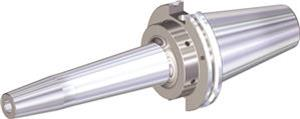

CAT50 .750 Inch I.D. x 8.00 Inch Gage Length Shrink-Fit Form A/BD Toolhoder

  • Item Code: CV50BHPVTT075800
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Clamping Length 1.6100 Inch
Flange Length 15.87 MM
Gage Length 8 Inch
Hole Diameter (Decimal) 0.7500 Inch
Hole Diameter (Fractional) 3/4 Inch
Hole Diameter (Metric) 19.05 MM
Shank Length 4.1250 Inch
Adjustment Range 0.3937 Inch
Product Name Shrink Fit Toolholder
Body Diameter 1.2990 Inch
Overall Length 12 Inch
RPM 15000
Hand of Tool Neutral
Shank Style Taper
Unit of Measure Inch
Brand WIDIA-Erickson
