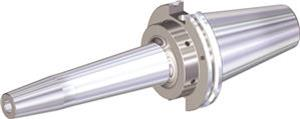

CAT50 1.250 Inch I.D. x 8.00 Inch Gage Length Shrink-Fit Form A/BD Toolhoder

  • Item Code: CV50BHPVTT125800
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 1.7320 Inch
Clamping Length 2.0100 Inch
Hole Diameter (Decimal) 1.2500 Inch
Hole Diameter (Fractional) 1-1/4 Inch
Hole Diameter (Metric) 31.75 MM
RPM 15000
Product Name Shrink Fit Toolholder
Unit of Measure Inch
Gage Length 8 Inch
Adjustment Range 0.3937 Inch
Brand WIDIA-Erickson
Hand of Tool Neutral
Shank Length 4.1250 Inch
Flange Length 15.87 MM
Overall Length 12 Inch
Shank Style Taper
