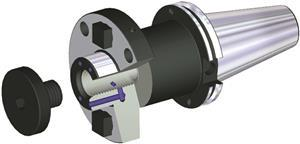

CAT50 3/4 Inch Arbor x 7.00 Inch Gage Length SMC IN-CV Form B/AD Shell Mill Adapter
- Item Code: CV50BSMC075700
- Brand: WIDIA-Erickson
- Unit Size: 1
| Body Diameter 1 Workpce Side (mm) |
44.500 |
| Body Diameter 2 Workpce Sde (In) |
2.0670 |
| Body Diameter 2 Workpce Sde (mm) |
52.500 |
| Flange-Front End Dist (In) |
6.9400 |
| Flange-Front End Dist (mm) |
176.276 |
| Gage Length 1 (Inch) |
7.0000 |
| Gage Length 1 (Metric) |
177.800 |
| Overall Length (Inch) |
11.6880 |
| Overall Length (Metric) |
296.875 |
| Pilot Length (Inch) |
0.6900 |
| Shank Length (Inch) |
4.1250 |
| Usable Length (Inch) |
1.0000 |
| Usable Length 2 (Inch) |
5.6250 |
| Usable Length 2 (Metric) |
142.875 |
| Adapt/Shank/Bore Diameter WKPS F |
3/4 |
| Cutter Ret Screw ID Drive Size |
1/4 |
| Shank Length (Metric) |
104.775 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
19.050 |
| Adapter/Shank/Bore Diameter (mm) |
69.850 |
| Body Diameter 1 Workpce Side (In) |
1.7520 |
| Max Interference Diameter (Inch) |
2.7500 |
| Units of Tool (Extract) |
IN - Inch |
| Adapt/Shank/Bore Diameter WKPS (In) |
0.7500 |
| Adapter/Shank/Bore Diameter (Fractional) |
2 3/4 |
| Adapter/Shank/Bore Diameter (Inch) |
2.7500 |
| Adapter Type Machine Side-EPP |
SKG - Steep Taper |
| Brand |
WIDIA-Erickson |
| Flange Length (Metric) |
15.875 |
| Adapter Size Machine Side-EPP |
0500 |
| Adapter Style Machine Side-EPP |
SKG37ANSICATInThdStBADw/CnDCnC |
| Body Diameter Machine Side (mm) |
98.425 |
| System Size Machine Side |
CV50 |
| Usable Length (Metric) |
25.400 |
| Adapter Size Workpiece Side |
0750 |
| Adapter Style Machine Side |
CV-Caterpillar V-Flange In |
| Adapter Type Machine Side |
Taper Shank |
| Body Diameter Machine Side (In) |
3.8750 |
| Pilot Length (Metric) |
17.500 |
