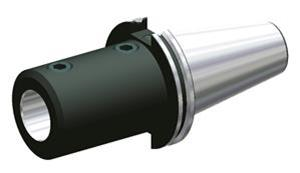

3/4 Inch Inside Hole Diameter, 2-3/4 Inch Projection, 1-3/4 Inch Nose Diameter, CAT50 Taper, Straight Shank with Flat Drill Adapter

  • Item Code: CV50BSSF075275
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter/Shank/Bore Diameter (mm) 69.850
Clamp Screw Thread Size 5/8 - 11 UNC
Gage Length 1 (Inch) 2.7500
Gage Length 1 (Metric) 69.850
Max Interference Diameter (Inch) 2.7500
Overall Length (Inch) 6.7500
Overall Length (Metric) 171.450
System Size Machine Side CV50
Usable Length (Inch) 1.3700
Usable Length (Metric) 34.798
Adapter Type Machine Side-EPP SKG - Steep Taper
Body Diameter Machine Side (mm) 98.425
Brand WIDIA-Erickson
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Style Machine Side-EPP SKG37ANSICATInThdStBADw/CnDCnC
Adapter Size Workpiece Side 0750
Adapter Type Machine Side Taper Shank
Body Diameter 1 Workpce Side (mm) 44.450
Body Diameter Machine Side (In) 3.8750
Adapt/Shank/Bore Diameter WKPS (In) 0.7500
Flange Length (Metric) 15.875
Shank Length (Inch) 4.1250
Adapt/Shank/Bore Diameter WKPS (mm) 19.050
Adapt/Shank/Bore Diameter WKPS F 3/4
Adapter Size Machine Side-EPP 0500
Shank Length (Metric) 104.775
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Clamp Screw ID Drive Size 5/16
Units of Tool (Extract) IN - Inch
Adapter/Shank/Bore Diameter (Inch) 2.7500
Body Diameter 1 Workpce Side (In) 1.7500
