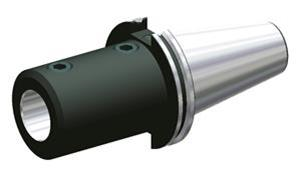

1 Inch Inside Hole Diameter, 4 Inch Projection, 2 Inch Nose Diameter, CAT50 Taper, Straight Shank with Flat Drill Adapter

  • Item Code: CV50BSSF100400
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 1 Workpce Side (mm) 50.800
Gage Length 1 (Metric) 101.600
Usable Length (Inch) 2.6200
Usable Length (Metric) 66.548
Adapter/Shank/Bore Diameter (mm) 69.850
Body Diameter 1 Workpce Side (In) 2.0000
Body Diameter Machine Side (In) 3.8750
Clamp Screw Thread Size 3/4-10 UNC
Shank Length (Metric) 104.775
Adapt/Shank/Bore Diameter WKPS (mm) 25.400
Overall Length (Inch) 8.0000
Adapter Type Machine Side-EPP SKG - Steep Taper
Overall Length (Metric) 203.200
Adapter Size Machine Side-EPP 0500
Adapter/Shank/Bore Diameter (Inch) 2.7500
Clamp Screw ID Drive Size 3/8
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Gage Length 1 (Inch) 4.0000
Shank Length (Inch) 4.1250
Adapt/Shank/Bore Diameter WKPS F 1
Adapter Size Workpiece Side 1000
Flange Length (Metric) 15.875
Max Interference Diameter (Inch) 2.7500
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (In) 1.0000
Adapter Style Machine Side-EPP SKG37ANSICATInThdStBADw/CnDCnC
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Body Diameter Machine Side (mm) 98.425
Brand WIDIA-Erickson
System Size Machine Side CV50
