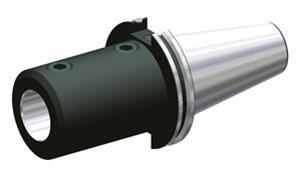

1.25 Inch Inside Hole Diameter, 4 Inch Projection, 2.5 Inch Nose Diameter, CAT50 Taper, Straight Shank with Flat Drill Adapter
- Item Code: CV50BSSF125400
- Brand: WIDIA-Erickson
- Unit Size: 1
| Usable Length (Inch) |
2.6250 |
| Usable Length (Metric) |
66.675 |
| Max Interference Diameter (Inch) |
2.7500 |
| Overall Length (Inch) |
8.0000 |
| Shank Length (Inch) |
4.1250 |
| Units of Tool (Extract) |
IN - Inch |
| Adapter Size Workpiece Side |
1250 |
| Adapter Style Machine Side |
CV-Caterpillar V-Flange In |
| Body Diameter Machine Side (In) |
3.8750 |
| Body Diameter Machine Side (mm) |
98.425 |
| Gage Length 1 (Inch) |
4.0000 |
| System Size Machine Side |
CV50 |
| Adapter/Shank/Bore Diameter (Fractional) |
2 3/4 |
| Flange Length (Metric) |
15.875 |
| Adapter Type Machine Side |
Taper Shank |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.2500 |
| Adapter Size Machine Side-EPP |
0500 |
| Gage Length 1 (Metric) |
101.600 |
| Shank Length (Metric) |
104.775 |
| Adapter Type Machine Side-EPP |
SKG - Steep Taper |
| Adapter/Shank/Bore Diameter (mm) |
69.850 |
| Clamp Screw Thread Size |
3/4-10 UNC |
| Overall Length (Metric) |
203.200 |
| Adapter Style Machine Side-EPP |
SKG37ANSICATInThdStBADw/CnDCnC |
| Body Diameter 1 Workpce Side (In) |
2.5000 |
| Brand |
WIDIA-Erickson |
| Clamp Screw ID Drive Size |
3/8 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
31.750 |
| Adapt/Shank/Bore Diameter WKPS F |
1 1/4 |
| Adapter/Shank/Bore Diameter (Inch) |
2.7500 |
| Body Diameter 1 Workpce Side (mm) |
63.500 |
