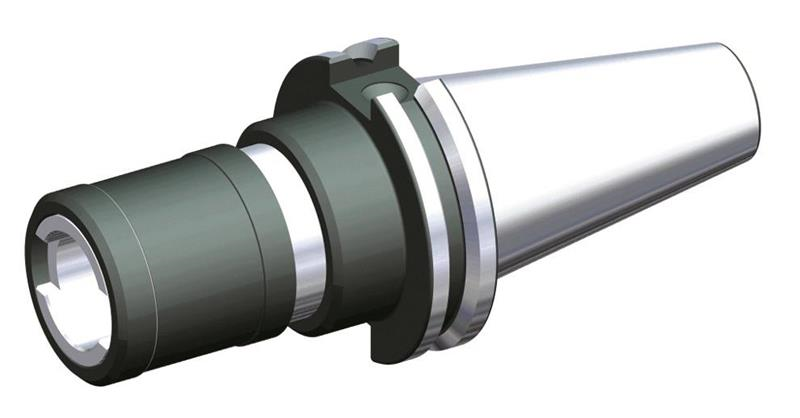

13/16 to 1-3/8 Inch Tap Capacity, CAT50 Shank, Through Coolant, Tapping Chuck and Holder

  • Item Code: CV50CSTRC3481
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 1.8900
Adapt/Shank/Bore Diameter WKPS (mm) 48.000
Adapter Size Workpiece Side 0480
Body Diameter 1 Workpce Side (In) 2.8120
Body Diameter 1 Workpce Side (mm) 71.425
Gage Length 1 (Inch) 4.8100
Gage Length 1 (Metric) 122.174
Tap Quick Change Size 3
Tap Range (Inch) 13/16 - 1 3/8
Tap Range (Metric) M14 - M27
Tap Range DIN M14 - M36
Max Interference Diameter (Inch) 2.7500
Shank Length (Inch) 4.1250
Adapter Size Machine Side-EPP 0500
Coolant Supply Yes
Shank Length (Metric) 104.775
Units of Tool (Extract) MM - Metric
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter Style Machine Side-EPP SKG30ANSICAT InThdStyAw/oCool
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (mm) 69.850
Adapter/Shank/Bore Diameter (Inch) 2.7500
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Body Diameter Machine Side (In) 3.8750
Brand WIDIA-Erickson
Body Diameter Machine Side (mm) 98.425
System Size Machine Side CV50
