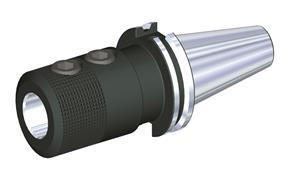

1/2 Inch Hole Diameter, 1-8 Drawbar Thread, CAT50 Taper Shank End Mill Holder

  • Item Code: CV50EM050262
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 1 Workpce Side (In) 1.3750
Flange-Front End Dist (In) 1.8700
Flange-Front End Dist (mm) 47.498
Gage Length 1 (Inch) 2.6200
Gage Length 1 (Metric) 66.548
Overall Length (Inch) 6.6200
Overall Length (Metric) 168.150
Usable Length (Inch) 1.0944
Usable Length (Metric) 27.798
Adapt/Shank/Bore Diameter WKPS (In) 0.5000
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter/Shank/Bore Diameter (Inch) 2.7500
Body Diameter 1 Workpce Side (mm) 34.920
Adapter Size Workpiece Side 0500
Clamp Screw ID Drive Size 7/32
Flange Length (Metric) 15.875
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Shank Length (Inch) 4.1250
Shank Length (Metric) 104.775
Adapt/Shank/Bore Diameter WKPS (mm) 12.700
Adapter Size Machine Side-EPP 0500
Adapter Type Machine Side Taper Shank
Clamp Screw Thread Size 7/16-14
Adapter Style Machine Side CV-Caterpillar V-Flange In
Body Diameter Machine Side (In) 3.8750
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (mm) 69.850
Adapt/Shank/Bore Diameter WKPS F 1/2
System Size Machine Side CV50
Body Diameter Machine Side (mm) 98.420
Brand WIDIA-Erickson
Max Interference Diameter (Inch) 2.7500
Units of Tool (Extract) IN - Inch
