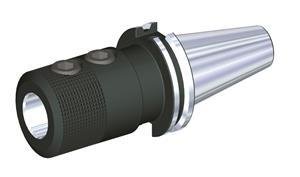

1/2 Inch Hole Diameter, 1-8 Drawbar Thread, CAT50 Taper Shank End Mill Holder

  • Item Code: CV50EM050462
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS F 1/2
Adapter Size Workpiece Side 0500
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Body Diameter 1 Workpce Side (In) 1.3800
Body Diameter 1 Workpce Side (mm) 34.900
Clamp Screw Thread Size 7/16-14
Flange-Front End Dist (In) 3.8700
Flange-Front End Dist (mm) 98.298
Gage Length 1 (Inch) 4.6200
Gage Length 1 (Metric) 117.348
Overall Length (Inch) 8.6200
Overall Length (Metric) 218.950
Usable Length (Inch) 2.9763
Usable Length (Metric) 75.598
Adapter/Shank/Bore Diameter (mm) 69.850
Body Diameter Machine Side (In) 3.8750
Shank Length (Metric) 104.775
Adapt/Shank/Bore Diameter WKPS (mm) 12.700
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Shank Length (Inch) 4.1250
Adapter Type Machine Side-EPP SKG - Steep Taper
Clamp Screw ID Drive Size 7/32
Body Diameter Machine Side (mm) 98.425
Brand WIDIA-Erickson
System Size Machine Side CV50
Adapt/Shank/Bore Diameter WKPS (In) 0.5000
Adapter/Shank/Bore Diameter (Inch) 2.7500
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Max Interference Diameter (Inch) 2.7500
Units of Tool (Extract) IN - Inch
Flange Length (Metric) 15.875
Adapter Size Machine Side-EPP 0500
