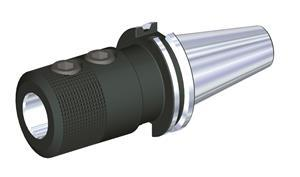

3/4 Inch Hole Diameter, 1-8 Drawbar Thread, CAT50 Taper Shank End Mill Holder

  • Item Code: CV50EM075375
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 1 Workpce Side (mm) 44.450
Flange-Front End Dist (In) 3.0000
Flange-Front End Dist (mm) 76.200
Gage Length 1 (Inch) 3.7500
Overall Length (Inch) 7.7500
Overall Length (Metric) 196.850
Usable Length (Inch) 2.1063
Usable Length (Metric) 53.500
Adapter Size Machine Side-EPP 0500
Adapter Style Machine Side CV-Caterpillar V-Flange In
System Size Machine Side CV50
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Adapter Type Machine Side-EPP SKG - Steep Taper
Body Diameter Machine Side (mm) 98.425
Brand WIDIA-Erickson
Clamp Screw Thread Size 5/8-11
Max Interference Diameter (Inch) 2.7500
Shank Length (Inch) 4.1250
Units of Tool (Extract) IN - Inch
Adapter Type Machine Side Taper Shank
Body Diameter 1 Workpce Side (In) 1.7500
Adapt/Shank/Bore Diameter WKPS (In) 0.7500
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter/Shank/Bore Diameter (mm) 69.850
Clamp Screw ID Drive Size 5/16
Gage Length 1 (Metric) 95.250
Adapter Size Workpiece Side 0750
Adapter/Shank/Bore Diameter (Inch) 2.7500
Body Diameter Machine Side (In) 3.8750
Adapt/Shank/Bore Diameter WKPS (mm) 19.050
Adapt/Shank/Bore Diameter WKPS F 3/4
Shank Length (Metric) 104.775
Flange Length (Metric) 15.875
