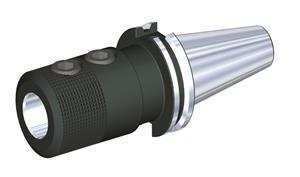

3/4 Inch Hole Diameter, 1-8 Drawbar Thread, 7-3/4 Inch, CAT50 Taper Shank End Mill Holder

  • Item Code: CV50EM075775
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Adapter/Shank/Bore Diameter (Inch) 2.7500
Body Diameter Machine Side (In) 3.8750
Clamp Screw Thread Size 0.625-11 UNC
Flange Length (Metric) 15.875
Flange-Front End Dist (In) 7.0000
Flange-Front End Dist (mm) 177.800
Gage Length 1 (Inch) 7.7500
Gage Length 1 (Metric) 196.850
Max Interference Diameter (Inch) 2.7550
Overall Length (Inch) 11.7500
Overall Length (Metric) 298.450
Shank Length (Metric) 104.775
Usable Length (Inch) 6.1350
Usable Length (Metric) 155.829
Adapt/Shank/Bore Diameter WKPS (In) 0.7500
Adapt/Shank/Bore Diameter WKPS (mm) 19.050
Adapter/Shank/Bore Diameter (mm) 69.850
Body Diameter 1 Workpce Side (In) 1.7500
Clamp Screw ID Drive Size 5/16
Adapter Size Machine Side-EPP 0500
System Size Machine Side CV50
Adapter Type Machine Side-EPP SKG - Steep Taper
Body Diameter Machine Side (mm) 98.420
Brand WIDIA-Erickson
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS F 3/4
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter Size Workpiece Side 0750
Shank Length (Inch) 4.1250
Adapter Type Machine Side Taper Shank
Body Diameter 1 Workpce Side (mm) 44.450
