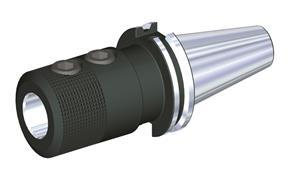

1-1/4 Inch Hole Diameter CAT50 1-8 Drawbar Thread Taper Shank End Mill Holder

  • Item Code: CV50EM1251000
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 1.2500
Flange-Front End Dist (In) 9.2500
Flange-Front End Dist (mm) 234.950
Gage Length 1 (Inch) 10.0000
Gage Length 1 (Metric) 254.000
Overall Length (Inch) 14.0000
Overall Length (Metric) 355.600
Shank Length (Inch) 4.1260
Usable Length (Inch) 8.5930
Usable Length (Metric) 218.630
Adapter Size Machine Side-EPP 0500
Adapter Style Machine Side CV-Caterpillar V-Flange In
Body Diameter 1 Workpce Side (mm) 63.500
System Size Machine Side CV50
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Adapter Type Machine Side-EPP SKG - Steep Taper
Body Diameter Machine Side (mm) 98.425
Brand WIDIA-Erickson
Max Interference Diameter (Inch) 2.7500
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (mm) 31.750
Adapter Type Machine Side Taper Shank
Shank Length (Metric) 104.800
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter/Shank/Bore Diameter (mm) 69.850
Adapt/Shank/Bore Diameter WKPS F 1 1/4
Body Diameter 1 Workpce Side (In) 2.5000
Clamp Screw ID Drive Size 3/8
Adapter/Shank/Bore Diameter (Inch) 2.7500
Body Diameter Machine Side (In) 3.8750
Adapter Size Workpiece Side 1250
Flange Length (Metric) 15.875
