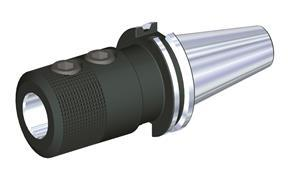

1-1/4 Inch Hole Diameter, 1-8 Drawbar Thread, CAT50 Taper Shank End Mill Holder

  • Item Code: CV50EM125400
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS F 1 1/4
Body Diameter Machine Side (mm) 98.420
Flange-Front End Dist (mm) 82.550
Overall Length (Metric) 203.200
Usable Length (Inch) 2.5531
Usable Length (Metric) 64.850
Adapt/Shank/Bore Diameter WKPS (In) 1.2500
Adapter Size Machine Side-EPP 0500
Body Diameter 1 Workpce Side (mm) 63.500
Brand WIDIA-Erickson
Clamp Screw ID Drive Size 3/8
System Size Machine Side CV50
Adapter Style Machine Side CV-Caterpillar V-Flange In
Gage Length 1 (Inch) 4.0000
Adapter/Shank/Bore Diameter (mm) 69.850
Body Diameter 1 Workpce Side (In) 2.5000
Adapter Size Workpiece Side 1250
Adapter Type Machine Side Taper Shank
Body Diameter Machine Side (In) 3.8750
Clamp Screw Thread Size 3/4-10 UNC
Adapter Type Machine Side-EPP SKG - Steep Taper
Gage Length 1 (Metric) 101.600
Shank Length (Metric) 104.775
Flange Length (Metric) 15.875
Flange-Front End Dist (In) 3.2500
Shank Length (Inch) 4.1250
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Overall Length (Inch) 8.0000
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (mm) 31.750
Adapter/Shank/Bore Diameter (Inch) 2.7500
Max Interference Diameter (Inch) 2.7500
