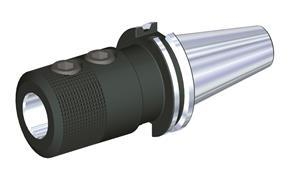

1-1/2 Inch Hole Diameter, 1-8 Drawbar Thread, CAT50 Taper Shank End Mill Holder

  • Item Code: CV50EM150800
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter Size Workpiece Side 1500
Body Diameter 1 Workpce Side (mm) 69.850
Flange-Front End Dist (In) 7.2500
Flange-Front End Dist (mm) 184.150
Gage Length 1 (Inch) 8.0000
Gage Length 1 (Metric) 203.200
Overall Length (Inch) 12.0000
Overall Length (Metric) 304.800
Shank Length (Metric) 104.800
Usable Length (Inch) 6.5850
Usable Length (Metric) 167.259
Adapter Type Machine Side Taper Shank
Body Diameter 1 Workpce Side (In) 2.7500
Adapt/Shank/Bore Diameter WKPS F 1 1/2
Flange Length (Metric) 15.875
Adapter Size Machine Side-EPP 0500
Adapter Style Machine Side CV-Caterpillar V-Flange In
Body Diameter Machine Side (mm) 98.425
System Size Machine Side CV50
Clamp Screw ID Drive Size 3/8
Adapt/Shank/Bore Diameter WKPS (In) 1.5000
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (mm) 69.850
Max Interference Diameter (Inch) 2.7550
Shank Length (Inch) 4.1260
Body Diameter Machine Side (In) 3.8750
Adapter Style Machine Side-EPP SKG31ANSICAT InThdStyADw/CntC
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter/Shank/Bore Diameter (Inch) 2.7500
Adapt/Shank/Bore Diameter WKPS (mm) 38.100
Brand WIDIA-Erickson
Units of Tool (Extract) IN - Inch
