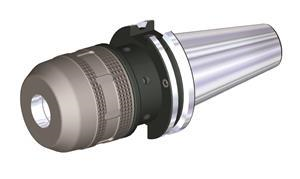

CAT50 1.250 Inch x 3.54 Inch Gage Length Form B/AD HPMC Milling Chuck

  • Item Code: CV50HPMC125354
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Diameter 1 Workpce Side (mm) 70.000
Body Diameter Machine Side (mm) 98.400
Flange-Front End Dist (In) 2.7937
Flange-Front End Dist (mm) 70.960
Gage Length 1 (Inch) 3.5433
Gage Length 1 (Metric) 90.000
Overall Length (Inch) 7.5433
Overall Length (Metric) 191.600
Shank Length (Inch) 4.1252
Usable Length (Inch) 2.7937
Usable Length (Metric) 70.960
Adapter Size Workpiece Side 1250
Body Diameter 1 Workpce Side (In) 2.7559
Shank Length (Metric) 104.780
Adapter/Shank/Bore Diameter (Inch) 2.7500
Adjustment Range (mm) 20.000
Stop Screw ID Drive Size 2.5 mm & 5 mm
Adapt/Shank/Bore Diameter WKPS F 1 1/4
Body Diameter Machine Side (In) 3.8740
Adapter Style Machine Side-EPP SKG37ANSICATInThdStBADw/CnDCnC
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adjustment Range (Inch) 0.7874
Brand WIDIA-Erickson
Units of Tool (Extract) IN - Inch
Adapt/Shank/Bore Diameter WKPS (In) 1.2500
Adapter Size Machine Side-EPP 0500
Adapter Style Machine Side CV-Caterpillar V-Flange In
Adapter Type Machine Side Taper Shank
Adapt/Shank/Bore Diameter WKPS (mm) 31.750
Max Interference Diameter (Inch) 2.7500
System Size Machine Side CV50
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (mm) 69.850
Flange Length (Metric) 15.860
