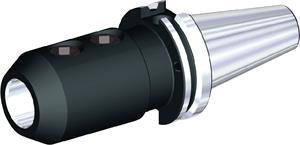

1 in. x 6.6780 in. CVKV40 Taper Shank End Mill Adapter
- Item Code: CVKV40BEM100400
- Brand: Widia-Erickson
- Unit Size: 1
Description
The CVKV40 tools are prebalanced to a high specification that will perform effectively up to 20,000 RPM.
Features
Back To Top- Balanceable, fine tune with optional M6 set screws
- Suitable for carbide and HSS cutting tools
Tech Specs
Back To Top| Fractional Diameter | 1" |
|---|---|
| Gage Length Inch | 4.0000" |
| Gage Length Metric | 101.60 mm |
| Body Diameter Metric | 50.80 mm |
| Body Diameter Inch | 2.0000" |
| Overall Length Inch | 6.6870" |
| Adapter Type | Taper Shank |
| Clamping Hole Length Inch | 4.4930" |
| Decimal Diameter | 1.0000" |
| Brand | Widia-Erickson |
| Clamping Hole Length Metric | 114.12 mm |
| Metric Diameter | 25.40 mm |
| Overall Length Metric | 169.85 mm |
| Series | CVKV40 |
