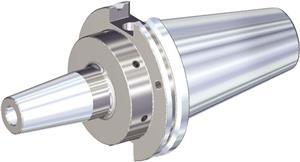

10 mm x 157.15 mm CVKV40 Taper Shank Shrink Fit General Purpose Toolholder
- Item Code: CVKV40HPVTT10M350
- Brand: Widia-Erickson
- Unit Size: 1
Description
The CVKV40 tools are prebalanced to a high specification that will perform effectively up to 20,000 RPM.
Features
Back To Top- Balanceable, fine tune with optional M6 set screws
- Suitable for carbide and HSS cutting tools
Tech Specs
Back To Top| Overall Length (mm) | 157.15 mm |
|---|---|
| Coolant Hole Diameter (in.) | 0.5365" |
| Series | CVKV40 |
| Brand | Widia-Erickson |
| Shank Type | Taper Shank |
| Coolant Thru | Yes |
| Adapter/Shank/Bore Dia (mm) | 44.45 mm |
| Coolant Hole Diameter (mm) | 13.627 mm |
| Adapter/Shank/Bore Dia (in.) | 1.7500" |
| Overall Length (in.) | 6.1870" |
