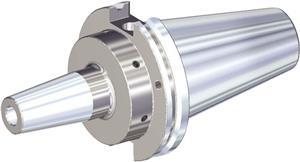

1 in. x 4.00 in. CVKV50 Taper Shank Shrink Fit General Purpose Toolholder

  • Item Code: CVKV50HPVTT100400
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

The CVKV50 tools are prebalanced to a high specification that will perform effectively up to 20,000 RPM. For any applications higher than 20,000 RPM, WIDIA? recommends that the complete toolholder assembly (toolholder, retention knobs, collets, hardware, and cutting tools) be balanced as one identity

Features Tech Specs

Features

Back To Top
    • Balanceable, fine tune with optional M6 set screws
    • Suitable for carbide and HSS cutting tools

Tech Specs

Back To Top
Brand Widia-Erickson
Coolant Thru Yes
Shank Type Taper Shank
Adapter/Shank/Bore Dia (in.) 2.7500"
Overall Length (in.) 8.0000"
Coolant Hole Diameter (mm) 22.30 mm
Series CVKV50
Adapter/Shank/Bore Dia (mm) 69.85 mm
Overall Length (mm) 203.20 mm
Coolant Hole Diameter (in.) 0.8780"
