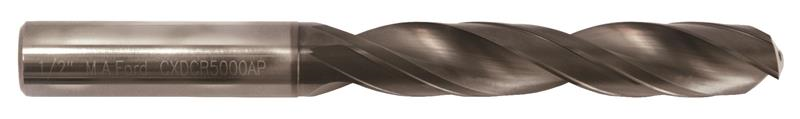

4.6mm Cyclone XD, 5X, Coolant Fed, High Performance Regular Length, Double Margin Drill - ALtima Plus Coated
- Item Code: CXDCR 0460AP
- Brand: MA Ford
- Unit Size: 1
Description
Cyclone XD - Series CXDCR
Designed for high performance drilling in a broad range of materials.
ALtima® Plus- This Aluminum Titanium Nitride (AlTiN) multi-layer coating has optimized coating structure, with pre and post treatment of the coating for optimized high performance drilling in any ferrous material.
Features
Back To Top- Lower Thrust Point Geometry
- Enhanced Double Margin Design
Tech Specs
Back To Top| Overall Length | 74 |
|---|---|
| Material | Solid Carbide |
| Decimal Diameter | 0.1811" |
| Length of Flute | 36 |
| Metric Diameter | 4.60 mm |
| Shank Diameter | 5 |
| Angle | 140°-142° |
| Coating/Finish | AlTiN |
| Series | Cyclone XD |
| Brand | MA Ford |
| Number of Flutes | 2 |
| Helix Angle | 30° |
| Point Length | 0.71 |
| Neck Length | 29 |
