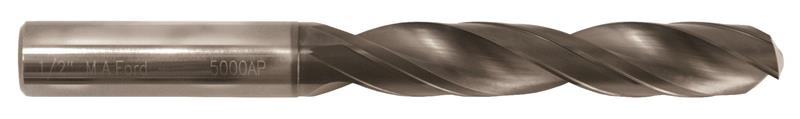

7.9mm Cyclone XD, 5X, Solid, High Performance Regular Length, Double Margin Drill - ALtima Plus Coated
- Item Code: CXDSR 0790AP
- Brand: MA Ford
- Unit Size: 1
Description
Cyclone XD - Series CXDSR
Designed for high performance drilling in a broad range of materials.
ALtima® Plus- This Aluminum Titanium Nitride (AlTiN) multi-layer coating has optimized coating structure, with pre and post treatment of the coating for optimized high performance drilling in any ferrous material.
Features
Back To Top- Lower Thrust Point Geometry
- Enhanced Double Margin Design
Tech Specs
Back To Top| Overall Length | 91 |
|---|---|
| Brand | MA Ford |
| Decimal Diameter | 0.3110" |
| Point Length | 1.22 |
| Length of Flute | 53 |
| Metric Diameter | 7.90 mm |
| Neck Length | 43 |
| Shank Diameter | 8 |
| Helix Angle | 30° |
| Number of Flutes | 2 |
| Coating/Finish | AlTiN |
| Material | Solid Carbide |
| Angle | 140°-142° |
| Series | Cyclone XD |
