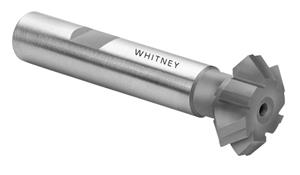

1 in. x 60 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA10060C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301058
Material Carbide Tipped
Shank Diameter Tolerance +0", -0.0005"
Style Double Angle
Width Tolerance 0.015"
OD Tolerance 0.015"
Included Angle 60
Overall Length Fractional 2-27/32"
Shank Diameter 1/2"
Brand Whitney Tool
Fractional Cutting Diameter 1"
Number of Teeth 6
Shank Type Weldon
Cut Width 5/16"
Angle Tolerance 1/4 deg.
Coating None
Metric Cutting Diameter 25.40 mm
Tooth Configuration Straight
