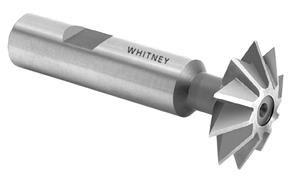

1-3/8 in. x 60 deg. Uncoated HSS Double Angle Chamfer Milling Cutter
- Item Code: DA137560
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Double Angle Chamfer Milling Cutters - High Speed Steel
Made in USA
Features
Back To Top- Right Hand Cut
- Weldon Shank
- 60 deg. and 90 deg. Angles Available
Tech Specs
Back To Top| Overall Length Fractional | 3-7/32" |
|---|---|
| UPC | 648672103324 |
| Shank Diameter Tolerance | +0", -0.0005" |
| Angle Tolerance | 1/4 deg. |
| Shank Diameter | 5/8" |
| Shank Type | Weldon |
| Style | Double Angle |
| Width Tolerance | 0.015" |
| Material | High Speed Steel |
| Tooth Configuration | Straight |
| Included Angle | 60 |
| Brand | Whitney Tool |
| Fractional Cutting Diameter | 1-3/8" |
| Coating | None |
| Cut Width | 7/16" |
| Metric Cutting Diameter | 34.925 mm |
| Number of Teeth | 10 |
| OD Tolerance | 0.015" |
