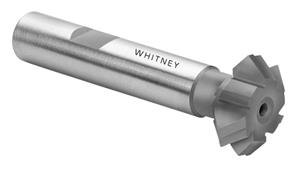

1-3/8 in. x 60 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA137560C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
Cut Width 7/16"
UPC 648672301065
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
Style Double Angle
Brand Whitney Tool
Shank Diameter 5/8"
Width Tolerance 0.015"
Angle Tolerance 1/4 deg.
Coating None
Fractional Cutting Diameter 1-3/8"
Metric Cutting Diameter 34.925 mm
OD Tolerance 0.015"
Overall Length Fractional 2-7/32"
Tooth Configuration Straight
Material Carbide Tipped
Included Angle 60
Number of Teeth 6
