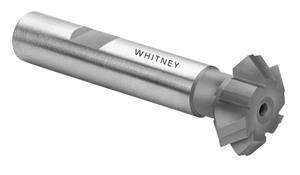

1-3/8 in. x 90 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA137590C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
OD Tolerance 0.015"
UPC 648672301126
Overall Length Fractional 3-9/32"
Shank Diameter Tolerance +0", -0.0005"
Metric Cutting Diameter 34.925 mm
Material Carbide Tipped
Shank Diameter 5/8"
Style Double Angle
Tooth Configuration Straight
Width Tolerance 0.015"
Fractional Cutting Diameter 1-3/8"
Included Angle 90
Cut Width 1/2"
Number of Teeth 6
Shank Type Weldon
Angle Tolerance 1/4 deg.
Coating None
Brand Whitney Tool
