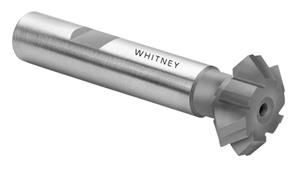

1-1/2 in. x 60 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA150060C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301072
Angle Tolerance 1/4 deg.
Coating None
Number of Teeth 6
Shank Type Weldon
Style Double Angle
Brand Whitney Tool
Included Angle 60
Material Carbide Tipped
Shank Diameter 5/8"
Width Tolerance 0.015"
Cut Width 1/2"
Fractional Cutting Diameter 1-1/2"
Metric Cutting Diameter 38.10 mm
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
OD Tolerance 0.015"
Overall Length Fractional 3-3/8"
