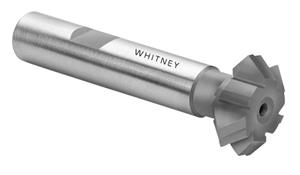

1-1/2 in. x 60 deg. TiN Coated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA150060CT
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672351077
Included Angle 60
Material Carbide Tipped
Shank Diameter 5/8"
Number of Teeth 6
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
Style Double Angle
Width Tolerance 0.015"
Fractional Cutting Diameter 1-1/2"
Brand Whitney Tool
Coating TiN
Cut Width 1/2"
Angle Tolerance 1/4 deg.
Metric Cutting Diameter 38.10 mm
Tooth Configuration Straight
OD Tolerance 0.015"
Overall Length Fractional 3-3/8"
