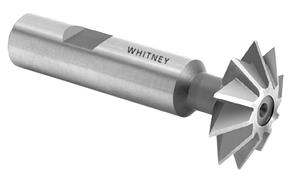

1-1/2 in. x 60 deg. TiN Coated HSS Double Angle Chamfer Milling Cutter
- Item Code: DA150060T
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Double Angle Chamfer Milling Cutters - High Speed Steel
Made in USA
Features
Back To Top- Right Hand Cut
- Weldon Shank
- 45 deg. and 60 deg. Angles Available
Tech Specs
Back To Top| UPC | 648672153336 |
|---|---|
| OD Tolerance | 0.015" |
| Overall Length Fractional | 3-3/8" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Material | High Speed Steel |
| Shank Type | Weldon |
| Metric Cutting Diameter | 38.10 mm |
| Style | Double Angle |
| Tooth Configuration | Straight |
| Angle Tolerance | 1/4 deg. |
| Number of Teeth | 10 |
| Brand | Whitney Tool |
| Coating | TiN |
| Cut Width | 1/2" |
| Included Angle | 60 |
| Fractional Cutting Diameter | 1-1/2" |
| Shank Diameter | 5/8" |
| Width Tolerance | 0.015" |
