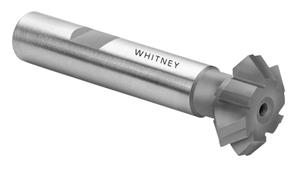

1-1/2 in. x 90 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA150090C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301133
Brand Whitney Tool
Metric Cutting Diameter 38.10 mm
Fractional Cutting Diameter 1-1/2"
Shank Diameter Tolerance +0", -0.0005"
Included Angle 90
OD Tolerance 0.015"
Overall Length Fractional 3-7/16"
Tooth Configuration Straight
Cut Width 9/16"
Material Carbide Tipped
Shank Diameter 5/8"
Style Double Angle
Width Tolerance 0.015"
Angle Tolerance 1/4 deg.
Coating None
Number of Teeth 6
Shank Type Weldon
