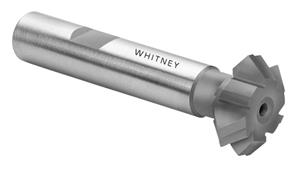

1-7/8 in. x 60 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA187560C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301089
Included Angle 60
Number of Teeth 6
Shank Type Weldon
Metric Cutting Diameter 47.625 mm
OD Tolerance 0.015"
Shank Diameter 3/4"
Shank Diameter Tolerance +0", -0.0005"
Angle Tolerance 1/4 deg.
Coating None
Fractional Cutting Diameter 1-7/8"
Overall Length Fractional 3-25/32"
Style Double Angle
Tooth Configuration Straight
Brand Whitney Tool
Cut Width 5/8"
Material Carbide Tipped
Width Tolerance 0.015"
