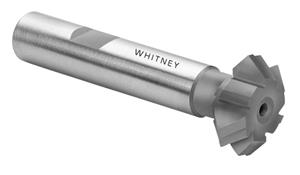

1-7/8 in. x 90 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA187590C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301140
Brand Whitney Tool
OD Tolerance 0.015"
Material Carbide Tipped
Shank Type Weldon
Style Double Angle
Width Tolerance 0.015"
Coating None
Included Angle 90
Fractional Cutting Diameter 1-7/8"
Cut Width 5/8"
Metric Cutting Diameter 47.625 mm
Shank Diameter Tolerance +0", -0.0005"
Number of Teeth 6
Angle Tolerance 1/4 deg.
Shank Diameter 3/4"
Tooth Configuration Straight
Overall Length Fractional 3-25/32"
