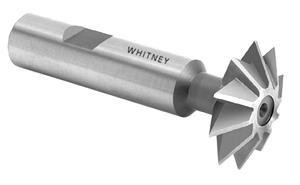

2-1/4 in. x 60 deg. TiN Coated HSS Double Angle Chamfer Milling Cutter

  • Item Code: DA225060T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank
    • 45 deg. and 60 deg. Angles Available

Tech Specs

Back To Top
UPC 648672153350
Included Angle 60
Metric Cutting Diameter 57.15 mm
Shank Type Weldon
Brand Whitney Tool
Cut Width 3/4"
OD Tolerance 0.015"
Shank Diameter 7/8"
Fractional Cutting Diameter 2-1/4"
Style Double Angle
Tooth Configuration Straight
Width Tolerance 0.015"
Coating TiN
Material High Speed Steel
Overall Length Fractional 4-5/32"
Number of Teeth 16
Shank Diameter Tolerance +0", -0.0005"
Angle Tolerance 1/4 deg.
